IGaT Display (EV14C17A)

The Integrated Graphics and Touch (IGaT) Curiosity Evaluation Kit (EV14C17A) is used as an optional standalone display alongside the Dyno. It runs on a SAM E51 MCU and is programmed independently from the dyno controller.

Here is a small video showing the capabilities of the board: https://youtu.be/NBVHWmz8veU

Firmware Location

The display HEX lives in:

MCDyno/igat_ev14c17a/doc/standalone/ATSAME51J20A_MC_Dyno_08_01_2026_IGAT.hex

Download

Download IGaT HEX

Programming Steps

  1. Connect a microUSB cable to the EV14C17A debug port.

  2. Open MPLAB IPE and select the ATSAME51PJ20A device.

  3. Program the HEX from doc/standalone/.

  4. Reset the board to run the UI.

Programming the IGaT HEX

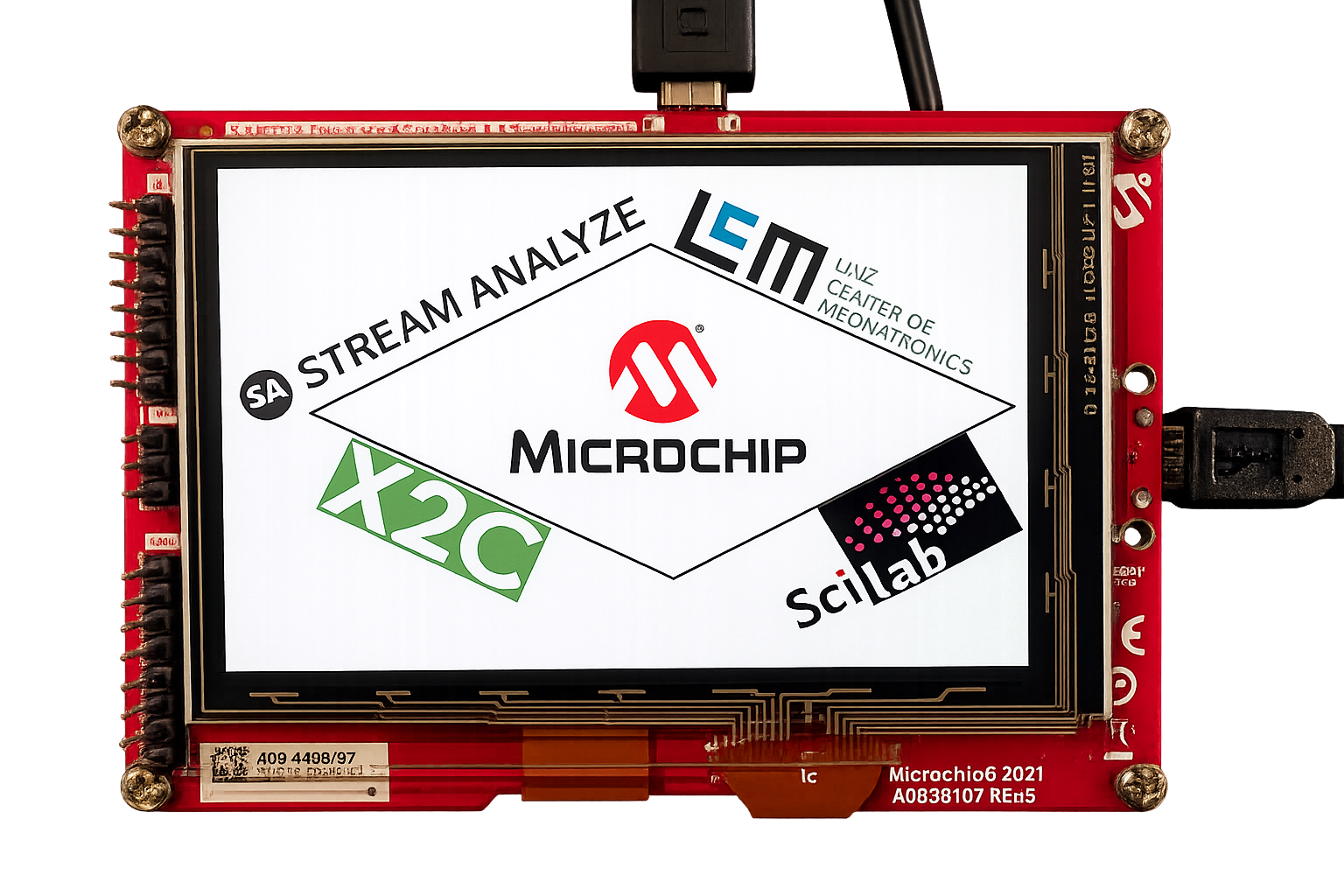

Final Result

IGaT display final result

More info on the kit: https://www.microchip.com/en-us/development-tool/ev14c17a
